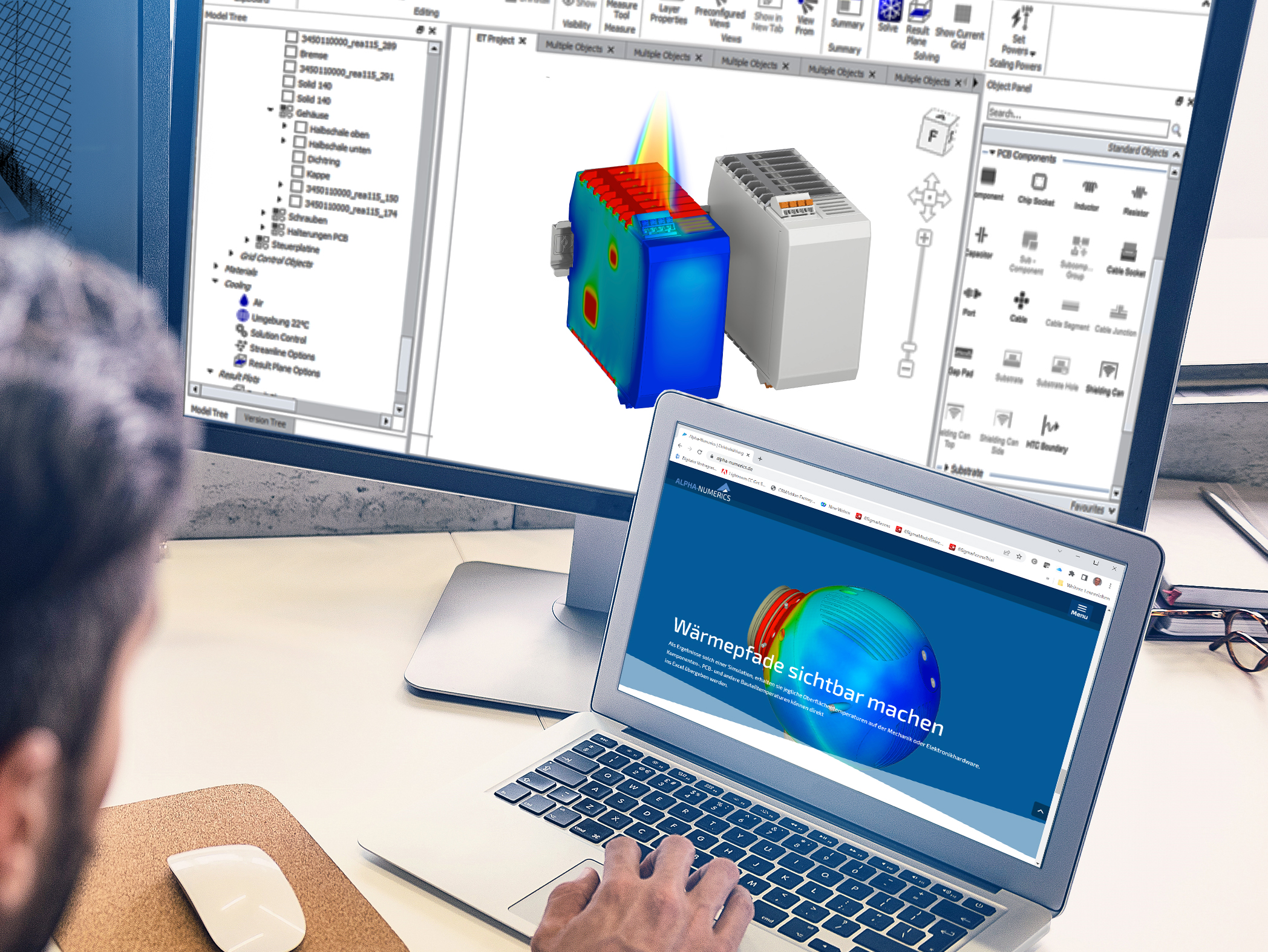

CelsiusEC – smart equipment simulation

With its innovative CFD software CelsiusEC, ALPHA-Numerics provides the electronics industry with a tool for the analysis of temperature, pressure and flow rate.

A wide range of variable parameters permit extremely realistic modeling which includes environmental conditions as well as utilized materials and their thermal characteristics. This makes calculating the heat generation of individual parts and components, as well as designing the entire thermal management of products, even easier and safer.

An overview of the options

With CelsiusEC you get an easy-to-operate but reliable simulation tool for equipment-level cooling and thermal management.

• Simple user interface
• Access to MCAD and ECAD data such as STEP, Gerber, ODB++ and more
• Comprehensive libraries for materials, fans and ECXML component access
• Optimum integration – highly automated
• Fast, stable solver (Windows, Linux, cluster-enabled)
• Numerical and graphical results analysis, automated reporting and the ability to export data to be processed in Excel.

Equipment simulation

So that we can simulate the thermal behavior of an individual component, assembly or complete system for you using CelsiusEC and estimate, in advance, the expected costs, you simply need to supply us with a corresponding STEP file, together with a short task description including your desired focus for the simulation results.

Following the simulation you’ll receive a detailed report in Excel format, including graphics, temperature charts and flow patterns. In a follow-up session you’ll also receive suggestions for thermal optimization – via Webex or, if you’d prefer, directly at your premises.

Most simulation jobs can be completed within one to four days – faster than many people assume.

We need CAD Data and clear requirements about your project - then we ar able to prepare a quote. Most simulation between 1.000€ and 4.000€.
