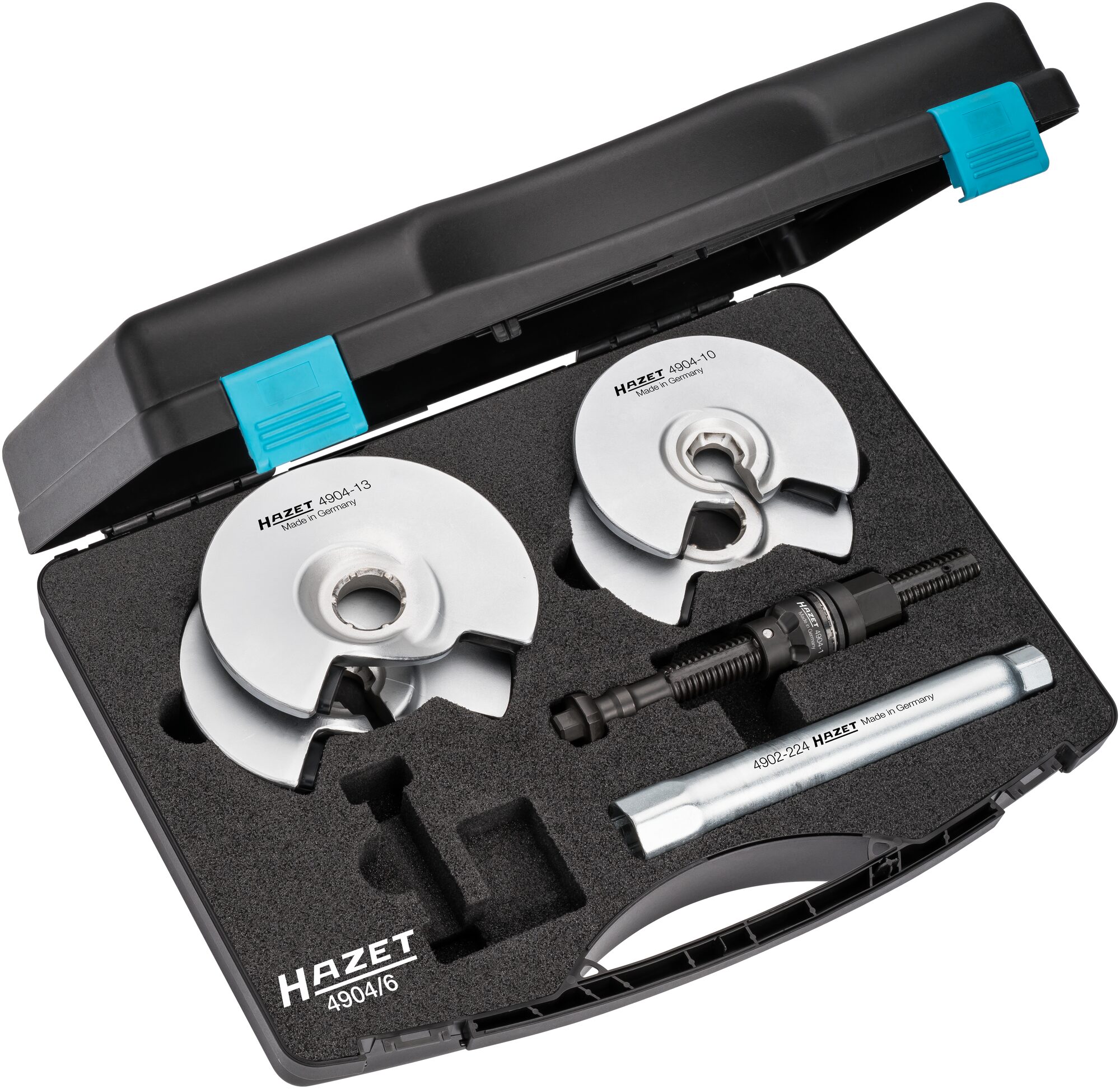

∙ 6-pieces

• Application:
  Removal and installation of the coil spring on the rear axle

• Compact HAZET design enables spring replacement with remarkable time savings
• Universal application on almost all passenger cars

• 6-piece set ∙ Contents:
  • 1 inside spring vice 4904-1
  • 1 tensioning jaw 4904-10 ∙ span width 64 – 115 mm
  • 1 tensioning jaw 4904-11 ∙ span width 64 – 115 mm
  • 1 tensioning jaw 4904-12 ∙ span width 79.5 – 133 mm
  • 1 tensioning jaw 4904-13 ∙ span width 79.5 – 133 mm
  • 1 tubular box wrench 4902-224 ∙ s 24 mm

• Anti-rotation device for lower tensioning jaws integrated in the base component reduces the outer ⌀ to only 32 mm thanks to compact design
• Pendulum hexagonal head for equal force distribution with integrated anti-rotation protection for upper tensioning jaws
• One-sided counterholder for the spindle made possible by hexagon on top, e.g. with combination wrench HAZET 600N-13
• Removal and installation of springs with small coil spacing, e.g. for the MINI Cooper S (third generation) ∙ VW Passat (B8)
• Extension of the span to 120 mm and an increase of the maximum load for increasing vehicle weights (electric and hybrid vehicles), for safe working up to 31,000 N → Tested with at least four-fold safety against breakage (GS mark of tested safety)
• 17° angular movement of the tensioning jaws now ensures removal of C-shaped (bent) springs, e.g. on the AUDI A4 (B9) ∙ VW Golf 7
• Internal and external guidance of the tensioning jaws prevents the spring from sliding out
• All tensioning jaws included, reusable, replaceable plastic protective pads
• Tested on vehicles of the following manufacturers:
  AUDI ∙ BMW ∙ CITROËN ∙ FIAT ∙ FORD ∙ HYUNDAI ∙ KIA ∙ MAZDA ∙ MERCEDES-BENZ ∙ MINI ∙ OPEL ∙ PEUGEOT ∙ RENAULT ∙ SEAT ∙ ŠKODA ∙ TOYOTA ∙ VW

Highlights:

• Easy handling for just one user
• Eliminates time-consuming work associated with most spring removal:
  • Removal of axle parts unnecessary
  • Axle alignment no longer necessary
  • Removal and installation possible in just a few minutes on each side

• Made in Germany

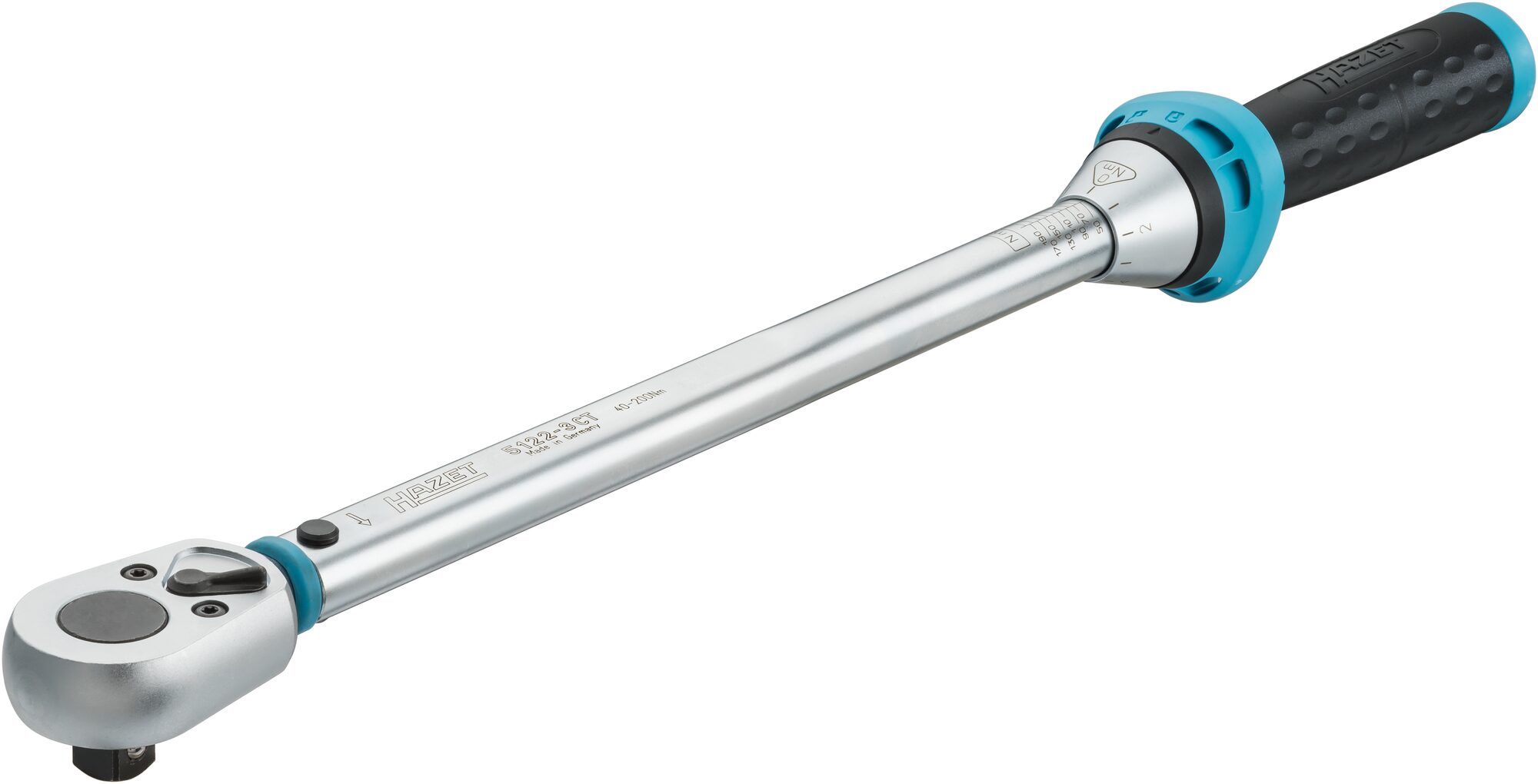

∙ Torque range min-max: 40 – 200 Nm ∙ Accuracy: 3 % ∙ 1/2 inch (12.5 mm) square, solid ∙ Length: 519 mm

• User-friendly reversible ratchet

– SYSTEM 5000-3 CT –

• Accuracy ± 3% of the scale value (in direction of actuation for right-hand tightening) (5107-3CT ± 4% accuracy of scale value)
• For left-hand tightening, use our torque wrenches with insert tool
• Safe:
  • Haptic (close-gap release)
  • Audible ("click" sound)
• Designed for rough workshop use
• Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry
• Optimised sealing ring to protect against debris
• Ratchet repair set for customer-oriented self-assembly enables decades of use
• Handle with better grip for easier power transmission
• Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
• Safe locking of the setting values by latching function on the rotary assembly
• Rotary assembly in triangular form prevents uncontrolled rolling
• Lock symbols indicate the respective locking status
• Can be attached to the cable loop through openings on the locking rotary assembly
• Easy-to-read, high-contrast scale
• Permanent readability due to laser marking on the scale bush
• Integrated shift lever
  5121-3CT – 5123-3CT: shift lever with idle function – reduces risk of injury and malfunction
• With calibration certificate and serial number
• Delivery in sturdy Hexa plastic box

• Made in Germany

• Auto Bild, best in test 2019, HAZET torque wrench 5122-3 CT, Issue 32/2019
  Auto Bild Klassik, best in test 2020, HAZET torque wrench 5122-3 CT, Issue 6, June 2020

• No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required

SYSTEM 5000-3 CT Workshop torque wrenches

1 – 800 Nm ∙ with reversible ratchet ∙ accuracy ± 3 / 4 %

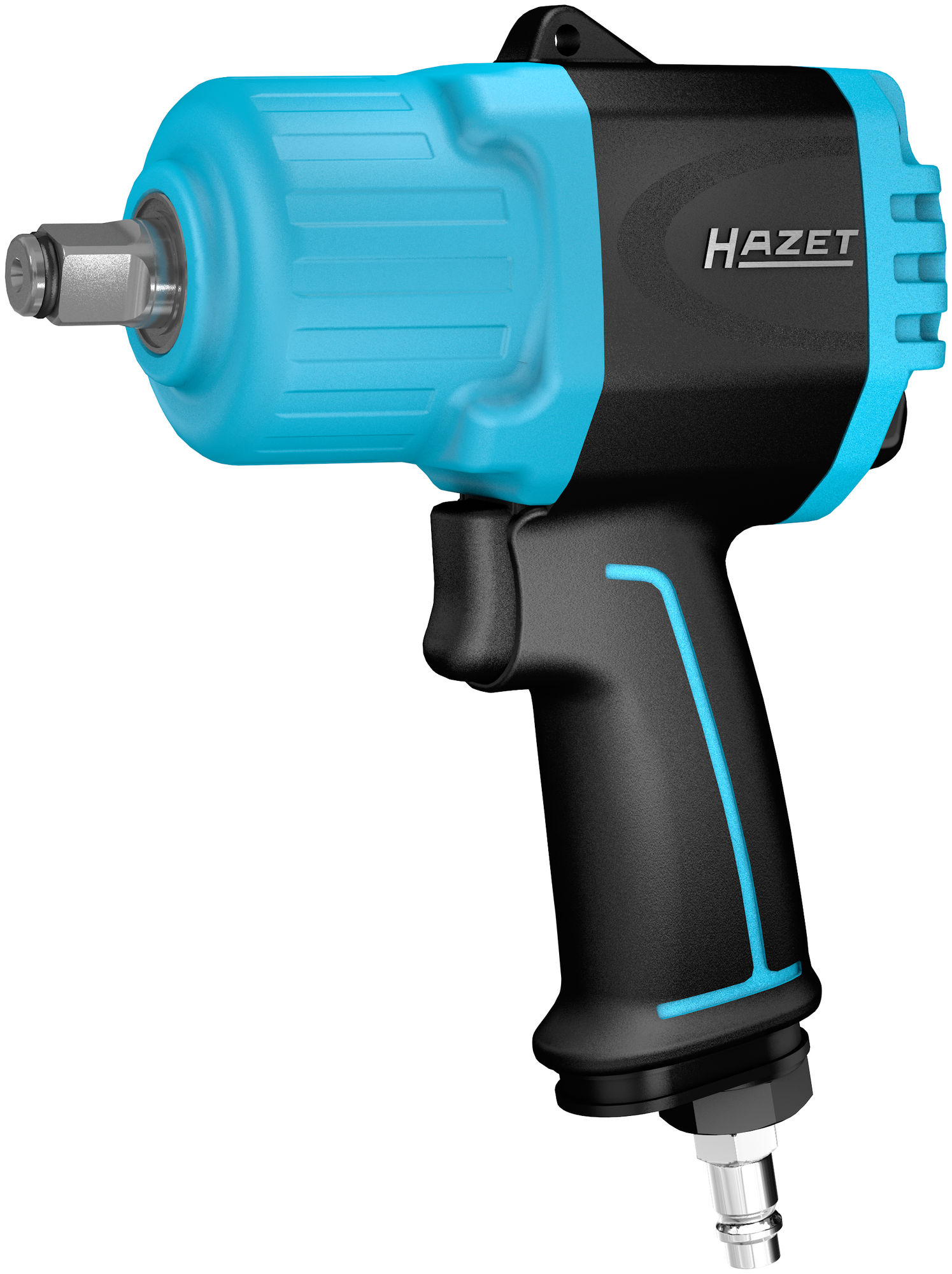

∙ Loosening torque maximum [Nm]: 2200 Nm ∙ 1/2 inch (12.5 mm) square, solid ∙ Powerful twin hammer mechanism

• Application:
  Long service life and high efficiency in industrial and automotive applications

• Loosening torque maximum [Nm]: 2200 Nm

• Exhaust air is guided through the handle downwards
• Reduced vibrations
• Easy handling

• Short design – only 128 mm
• HAZET Twin Turbo technology – high torques with compact design
• 8-blade air motor with 25% higher impact performance ensures maximum torque
• One-hand operation for right- and left-handed users

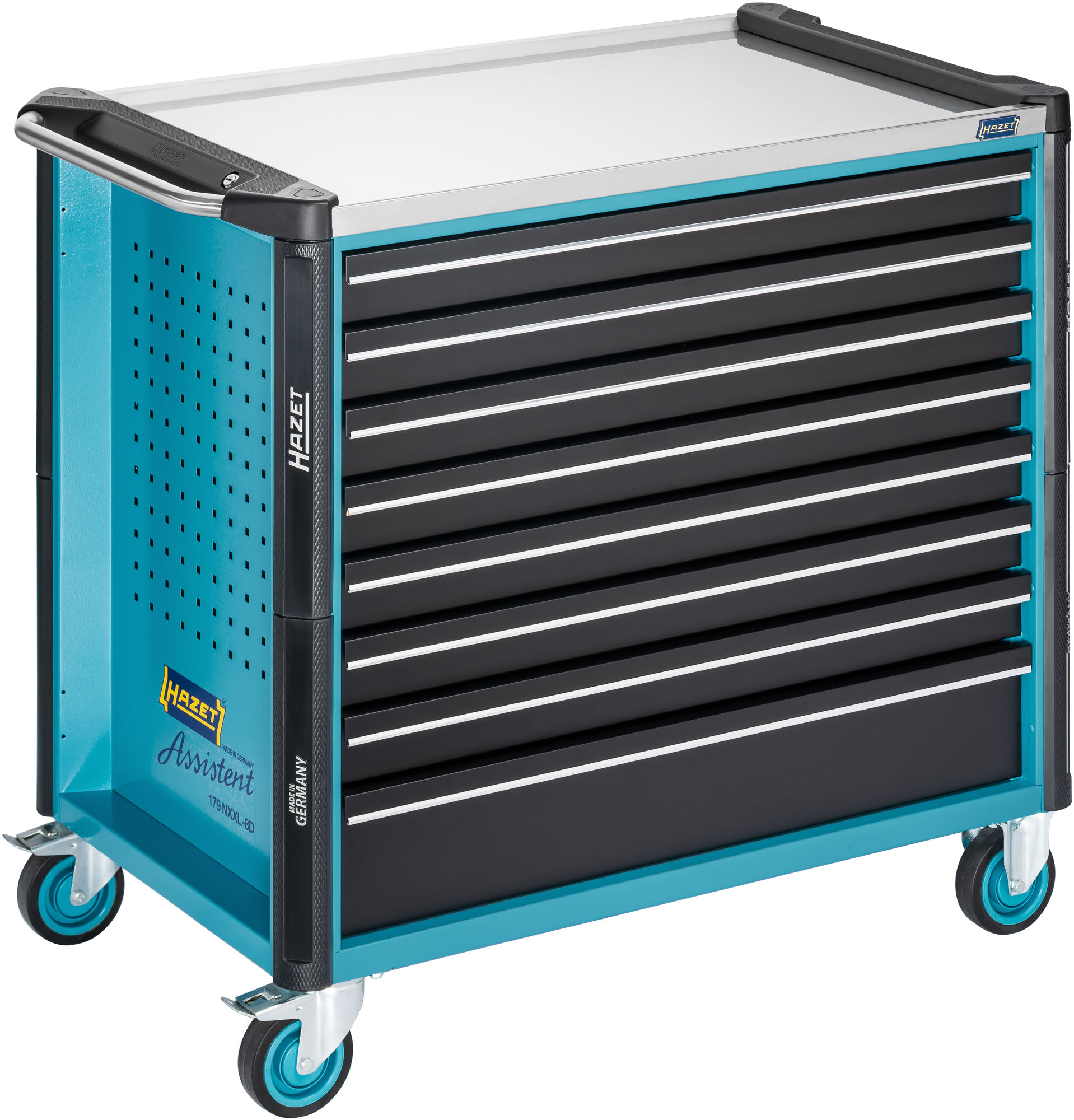

∙ 8 Drawers total ∙ L x W x H: 1133 mm x 642 mm x 1020 mm

• Application:
  Efficient, mobile organisation of tools

• Tool trolley – extra deep

• 7 flat and 1 high drawer

Work areas

• Much larger storage and work areas in stainless steel
• Fully sealed work surface protects inside of trolley from leaking liquids
• Interfaces integrated in the work area for accessories such as laptop holders and top modules
• Extra protection through high-quality plastic end caps

Body / Pull-handle

• Extremely robust design thanks to dual-wall structure
• Complete welded construction of the entire body for tough daily workshop use
• Optimised, yielding edge protection on all four corners with real impact protection thanks to internal damping concept
• Ergonomically optimised pull handle for better manoeuvrability
• Brushed stainless steel handle

Locking concept

• Ergonomically arranged side lock position for better operability protects keys and lock against damage
• Highly secure closing system with central locking technology for optimum protection of your property
• 2-stage locking
  • Central locking, lockable with cylinder lock and 2 folding keys
  • Mutual drawer locking for minimum tilting risk

Drawer concept

• Self-closing and reciprocal locking of the drawers prevents unwanted opening
• 100% sliding-out with ball-bearing telescopic slides
• Drawer design for optimum use of the interior
• Drawer fronts for optimised handling
• Dirt-resistant drawer coating for easy cleaning

High performance chassis

• Large wheels with high loading capacity, precision ball bearing and dual rounded rim in the pivot bearing, easy manoeuvrability, even with high dynamic load
• 2 swivel castors with double stop function: fixed castors prevent inadvertent rolling of the trolley,
  fixed swivel bearings prevent the castors from swivelling,
  e.g. on inclined surfaces
• Protective ring prevents dirt and threads from getting in
• Elastic castors enable smooth movement

• Made in Germany

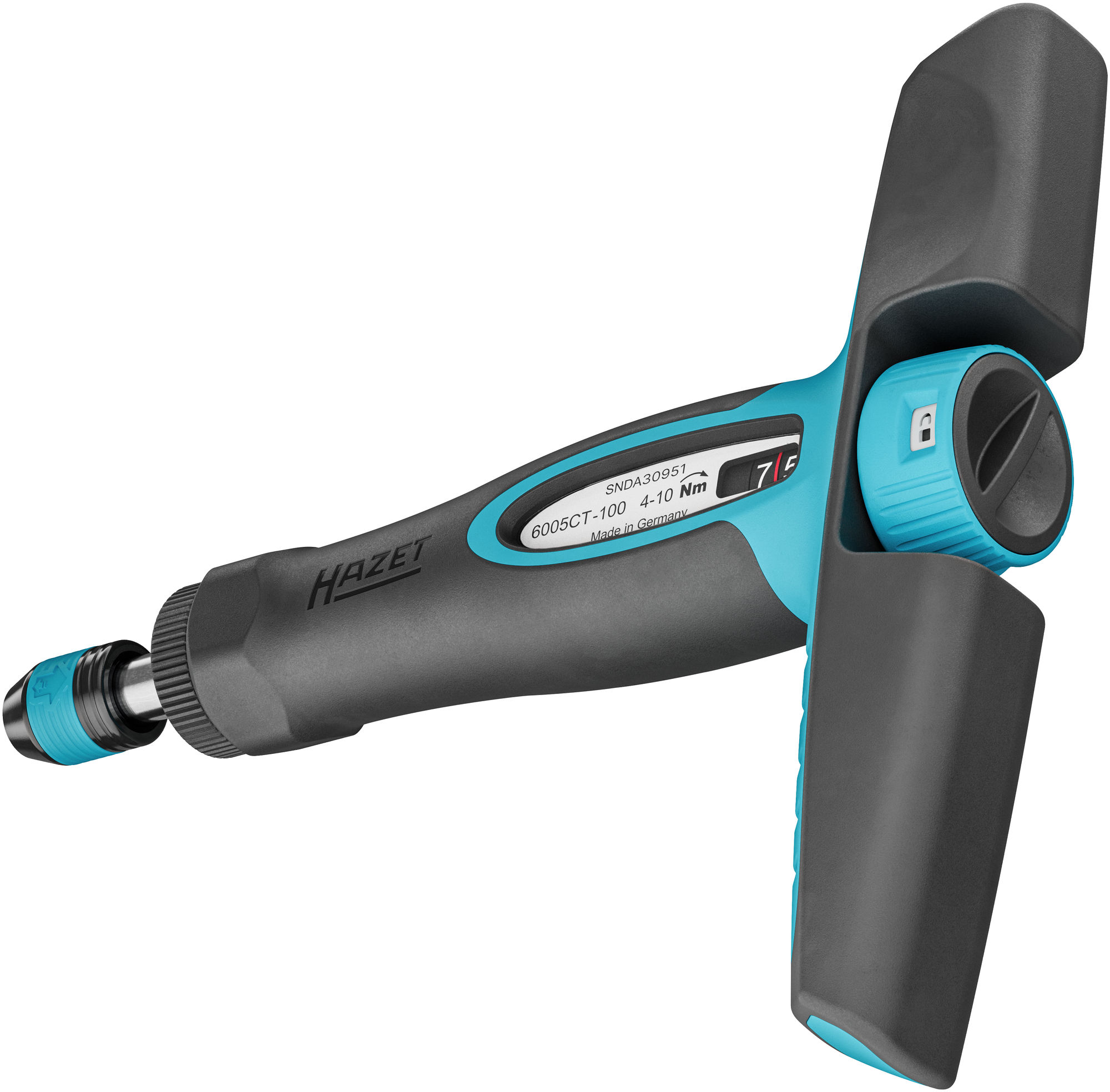

∙ Torque range min-max: 4 – 10 Nm ∙ Accuracy: 6 % ∙ 1/4 inch (6.3 mm) hexagon, hollow ∙ Length: 198 mm

• "Ratchet function" with free-running mechanism, featuring right ∙ left ∙ fixed switching ∙ enables fast work thanks to smooth re-gripping when operating screw connections, even in confined installation spaces

Available soon

• Excellent readability of the torque setting thanks to large, clear numerical display
• Short 36° release distance with ergonomic release behaviour and clearly audible signal
• Bit holder with quick-release fastener – fast bit change with one hand
• Release mechanism made of high-alloy tool steel with excellent wear resistance
• Exceeding the set torque is prevented by the overload clutch ("slipper")
• Easily recognisable locking status by means of lock symbols
• With calibration certificate and serial number
• Calibration and repair capability at the HAZET Service Centre in Remscheid

• Made in Germany
